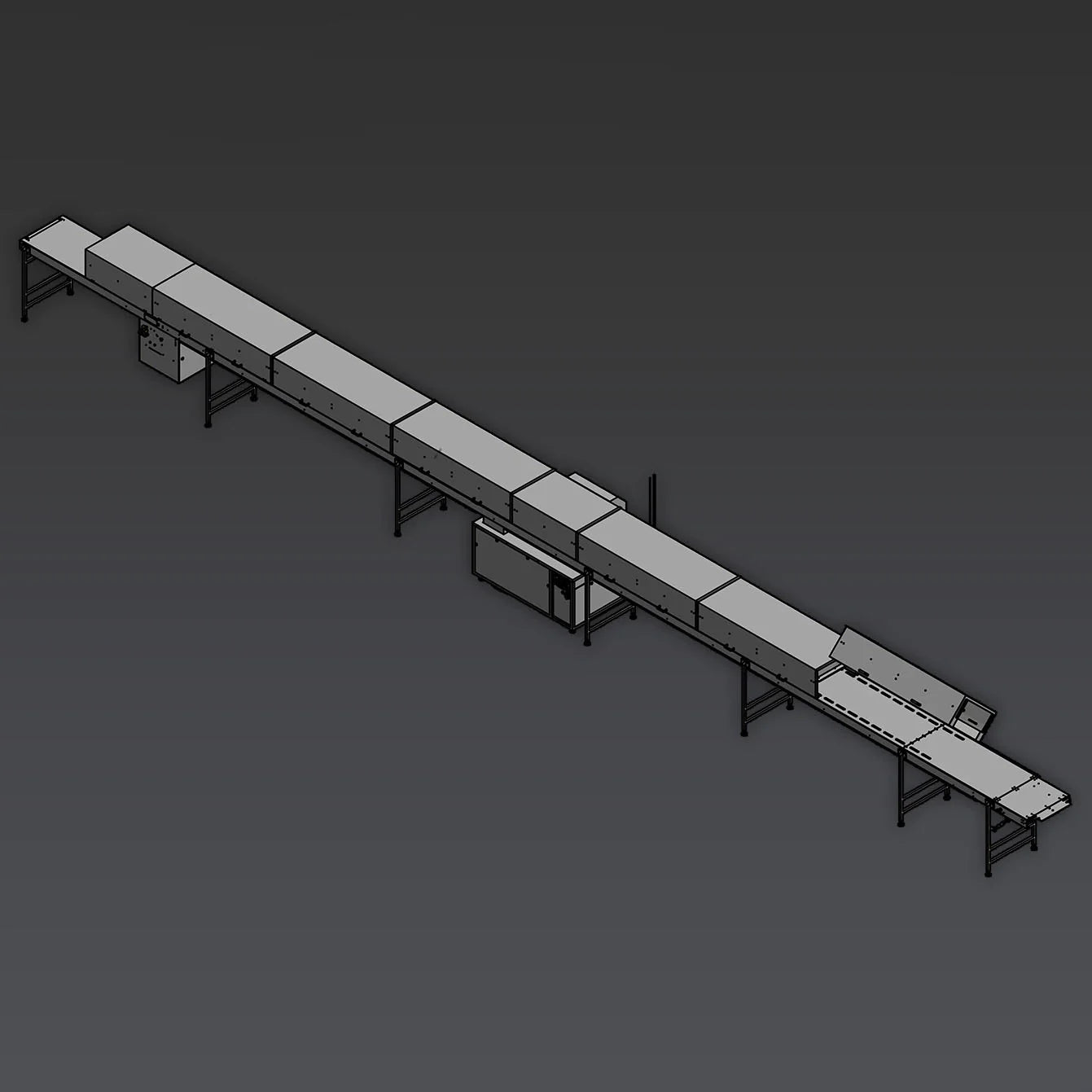

    Cooling tunnel

    LCM cooling tunnels are a useful addition to LCM’s line of enrobing machines. Product placed on the enrober can be packed and pickeddirectly at the end of the cooling tunnel. This creates an economical way of processing chocolate in high quantities. The differentvariantscan be found under technical data.

    PRODUCT DESCRIPTION

    • The length of the cooling tunnels is manufactured individually according to customer requirements, taking into account products,production speed and available space
    • The cooling temperature and humidity in the tunnel are individually adjustable

    Send Enquiry

    FEATURE

    • PLC control system, with 10" glass screen for convenient operation and menu navigation.
    • Synchronized speed with the current enrobing machines ATC with SPS control system
    • Decoration area 1 meter, take-off length 1 meter (can be changed on customer request at extra charge)
    • Release device - (breaking stage) 1.1 meter before the end of the belt (can be changed on customer's request at extra charge)
    • display, measurement and regulation of air humidity by means of sophisticated control of additional heating elements - this means that even with the smallest amount of products passing through the tunnel, there is no moisture in the tunnel, thus ensuring excellent gloss of the products from the very beginning
    • Display of humidity in %, working or cooling temperature up to 15°C - with optional equipment up to 5°C
    • Passive floor cooling
    • Fan for extremely gentle air circulation in the tunnel
    • Straight run control electronically via sensors and servomotors
    • Safety shutdown for conveyor belt runners
    • Speed infinitely variable via wear-free three-phase geared motor
    • Cooling tunnel segments completely made of stainless steel, insulated, removable and easy to clean - from the outside as well as the inside
    • For easy cleaning, the drain table can also be opened on the underside
    • The drive roller and the deflection rollers can be easily dismantled for thorough cleaning of the belt
    • Refrigeration unit with control electronics in separate mobile trolley for trouble-free and easy service
    • Cooling unit with heat exchanger easily accessible for regular cleaning
    • Connection to cold water circuit or refrigeration system on request

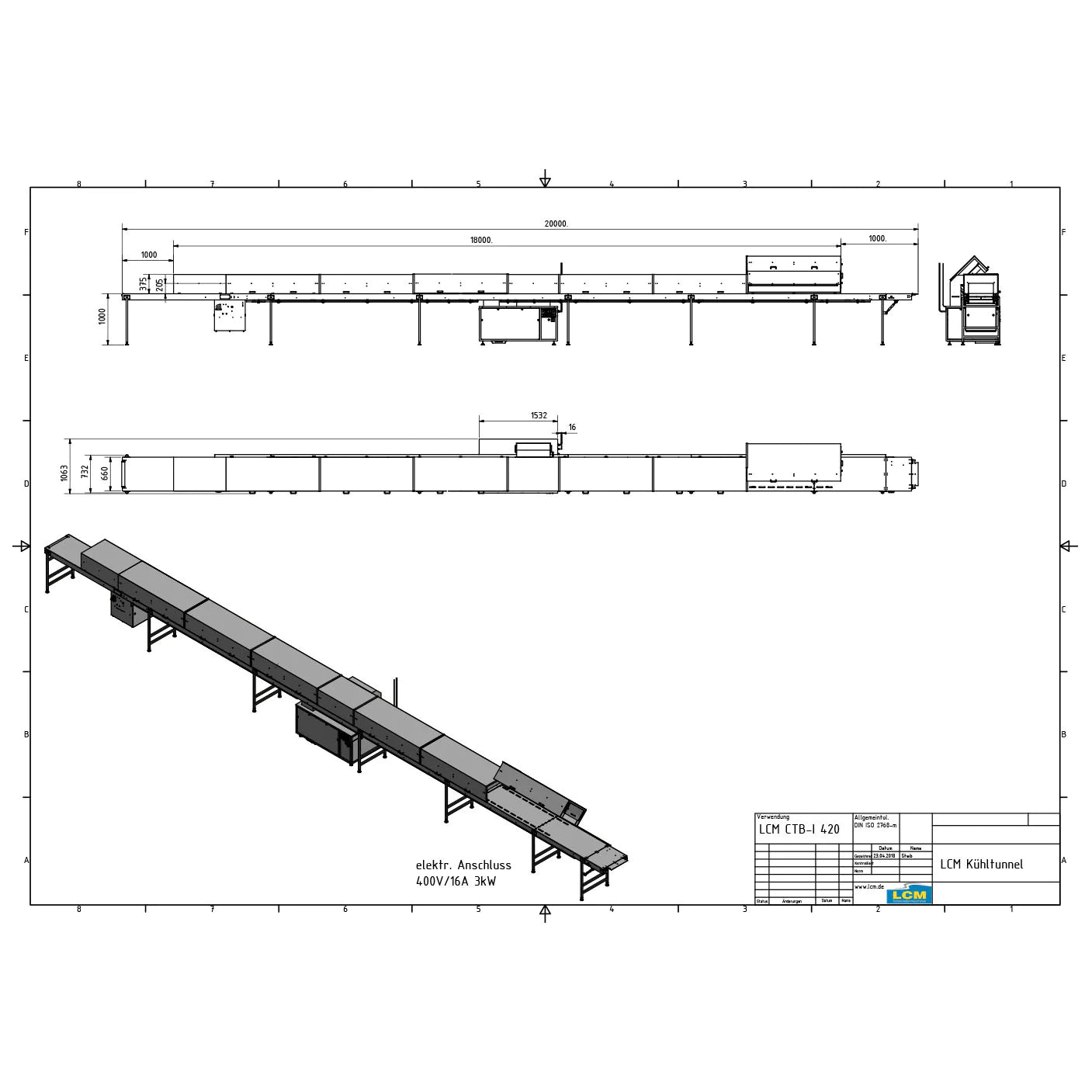

    TECHNICAL DATA

    Voltage (V) Current (A) Power (kW) Working height (cm)
    LCM CTB 400 16 3,3 97
