    LCM M-S

    LCM Chocolate Machinery

    LCM M-S

    CHOCOLATE MELTING TANK

    If you want to have melted chocolate available at all times, a melting tank is recommended. The LCM M-S is available in different models which can be found under Technical Data.

    PRODUCT DESCRIPTION

    • Chocolate melter with different tank sizes
    • Agitator with interval control - removable for easy cleaning
    • Heated Drain Valve

    Send Enquiry

    FEATURE

    • Automatic shutdown of the individual heating circuits depending on the filling quantity
    • Electrical direct contact heaters insulated to the outside ensure accurate temperature values and reduce energy consumption
    • Heated drain tube withdrain valve with adjustable temperature
    • Smooth start-up of the agitator due to the use of a frequency converter, resulting in low stress on the mechanical components and a long service life
    • Slow rotating stable agitator, removable for cleaning
    • Agitator drive at the bottom of the tank
    • Machine housing made of stainless steel, sturdy swivel castors make unit easy to move



    TECHNICAL DATA

    Capacity (kg) Width (cm) Depth (cm) Height of machine (cm) el. Connection (V/kW) Weight (kg)

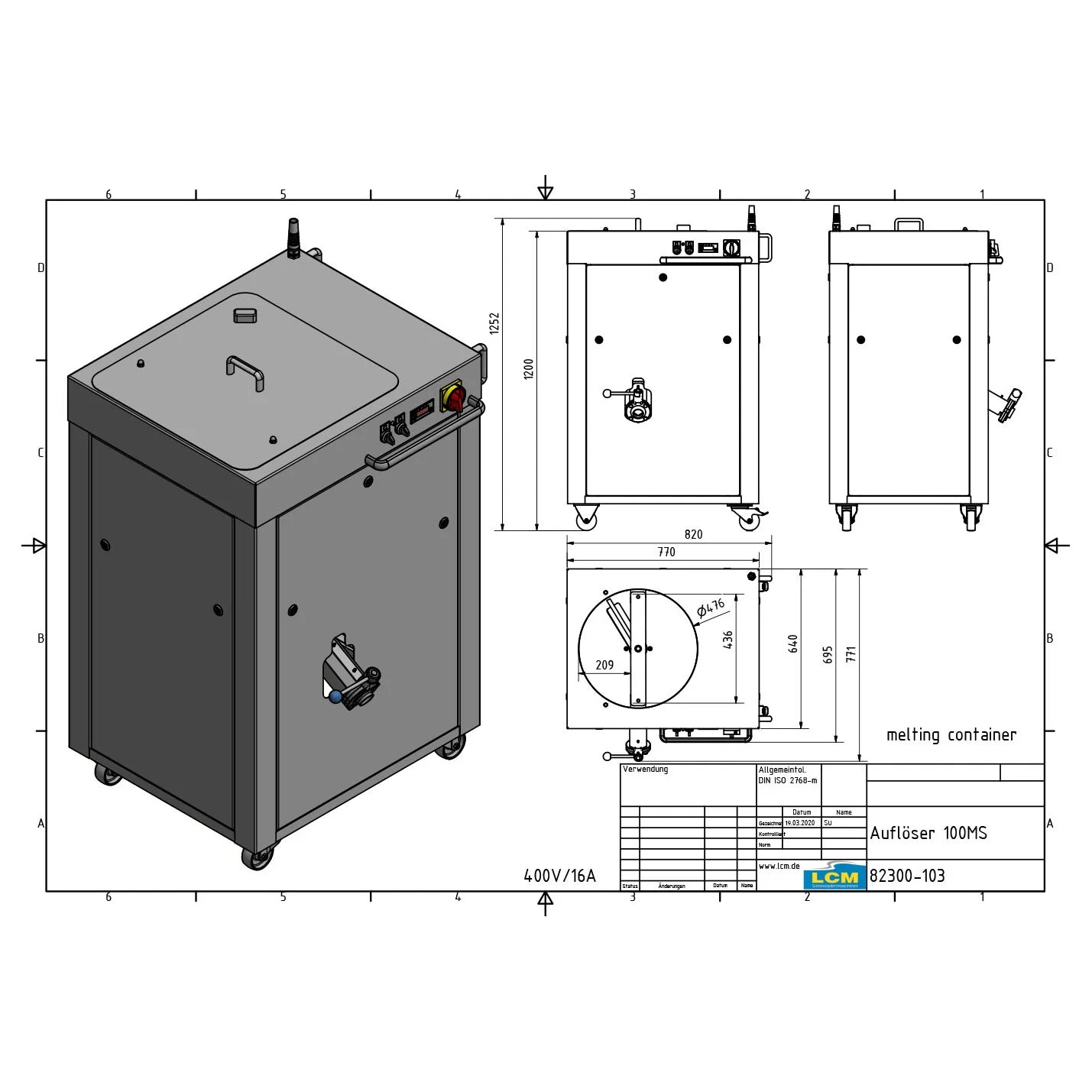

    LCM 100 M-S 100 82 78 120 400/1,6 120

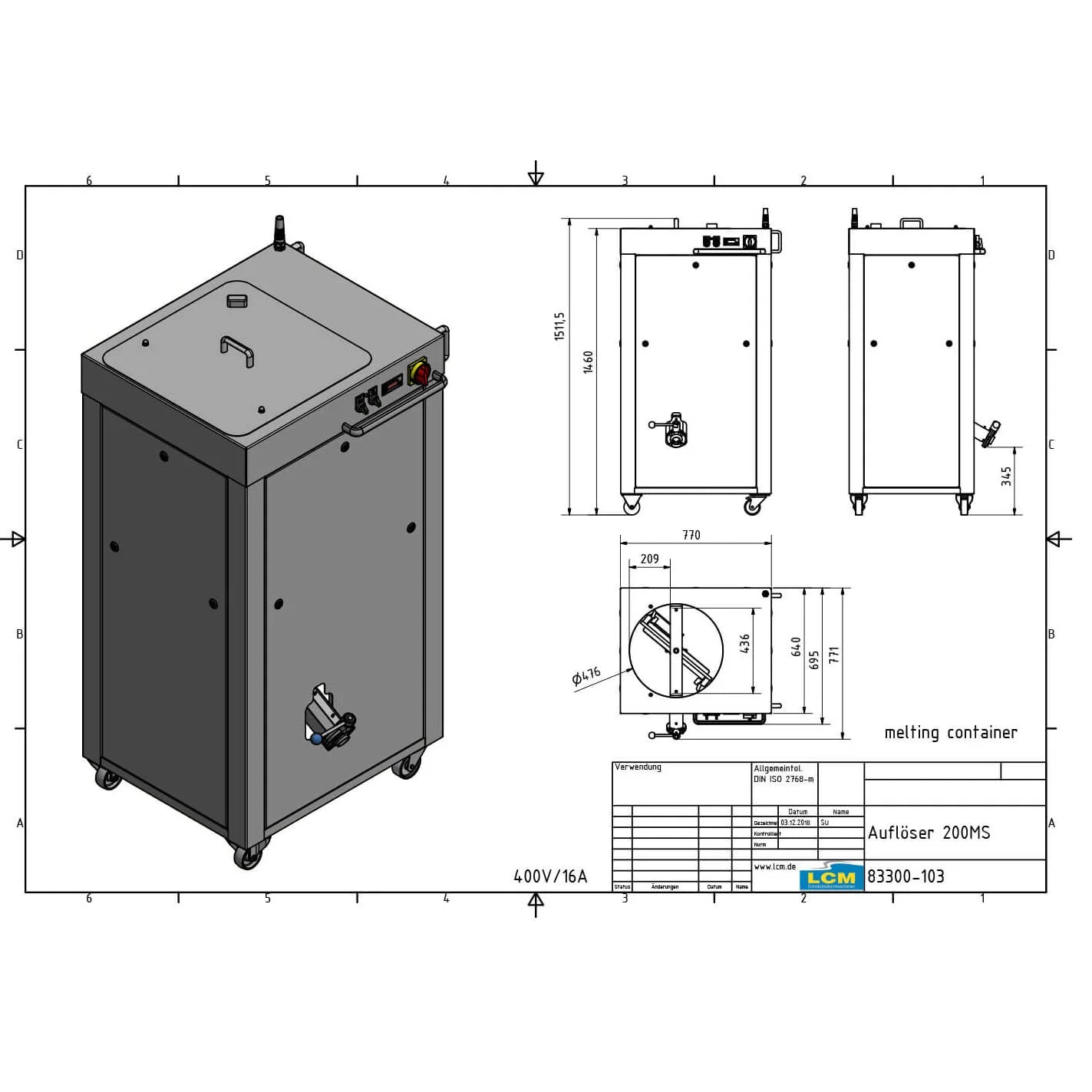

    LCM 200 M-S 200 82 78 130 400/1,8 140
    LCM 400 M-S 400       400/2,2 180
    LCM 600 M-S 600       400/2,6 240
